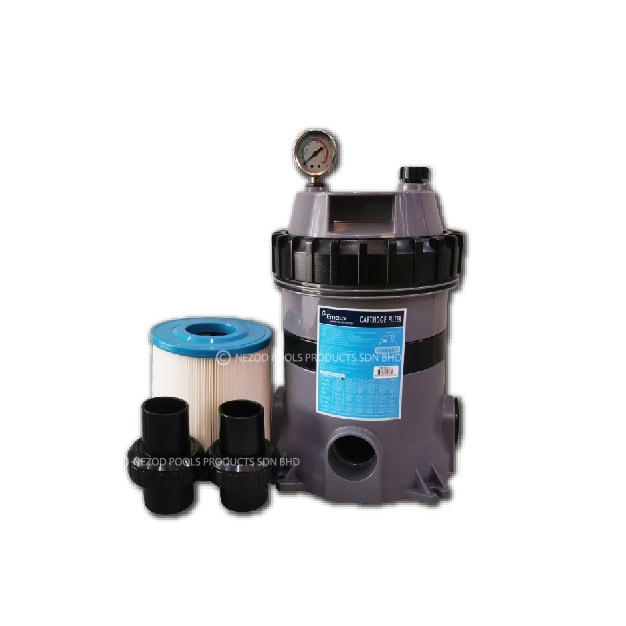

EMAUX CF25 25ft2 Cartridge Filter with 1.5″ union sets

COMPACT AND LIGHTWEIGHT For residential and semi-commercial pools Specification 1) Tank Material : UV Resistant Plastic 2) Max operating pressure : 36 psi / 2.5 bar. 3) Max flow rate allow : 5.5m³/hr (24.20USgpm) 4) *CF25 filter area : 2.25m² (25sqft) *Based on cartridge filtration rate of 0.375 USgpm/ft². 5) Max temperature : 40°C (122°F). 6) 1.5″ (40mmØ) plumbing connection for maximum flow. 7) Number of cartridge media : 1nos. 183mmØ x 184.5mm(H). 8) High-quality oil-filled pressure gauge for easy inspection of the operation pressure. 9) Screw type air bleeder for easy removal of trapped air inside the filter tank. 10) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element. 11) Easy access 1.5″ (40mmØ) drain cap. 12) Diameter of the filter unit : 225mmØ. 13) Height of the filter unit : 445mm. 14) Clearance to remove Filter Top : 20.0″ (500mm) height from floor level. 15) Filtration Level : 20µ (better than sand filter level appro. 100µ)
