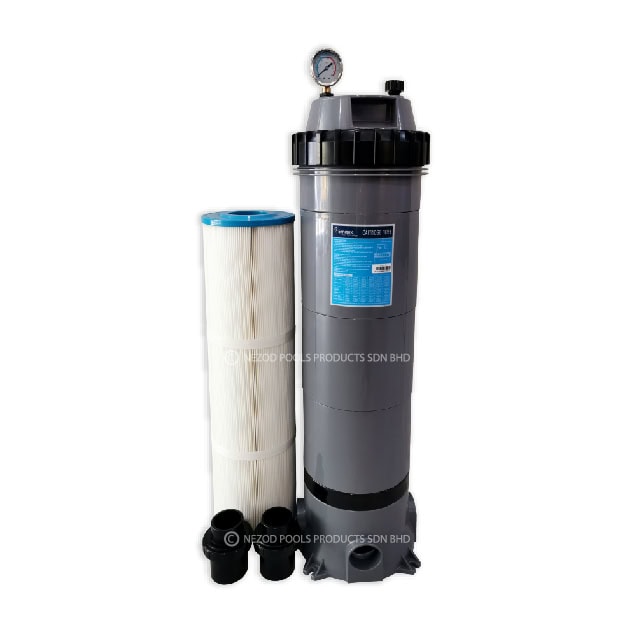

EMAUX CF100 100ft2 Cartridge Filter with 2.0″ union sets

COMPACT AND LIGHTWEIGHT For residential and semi-commercial pools Specification 1) Tank Material : UV Resistant Plastic 2) Max operating pressure : 36 psi / 2.5 bar. 3) Max flow rate allow : 22.90m³/hr (100.00USgpm) 4) *CF100 filter area : 9.40m² (100sqft) *Based on cartridge filtration rate of 0.375 USgpm/ft². 5) Max temperature : 40°C (122°F). 6) 2.0″ (50mmØ) plumbing connection for maximum flow. 7) Number of cartridge media : 1no. 183mmØ x 724.5mm(H). 8) High-quality oil-filled pressure gauge for easy inspection of the operation pressure. 9) Screw type air bleeder for easy removal of trapped air inside the filter tank. 10) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element. 11) Easy access 2.0″ (50mmØ) drain cap. 12) Diameter of the filter unit : 225mmØ. 13) Height of the filter unit : 985mm. 14) Clearance to remove Filter Top : 57″ (1450mm) height from floor level. 15) Filtration Level : 20µ (better than sand filter level appro. 100µ)
