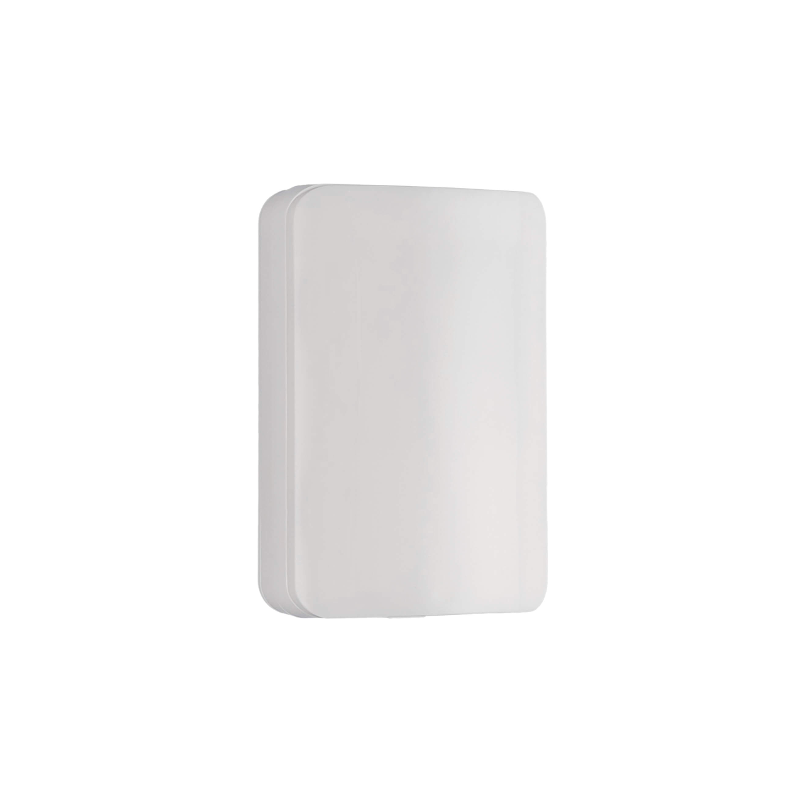

2GIG 345S PIR Motion Detector

Description Overview 345S Sensors The 2GIG 345S sensor line offers reliable security coverage for residential and commercial properties. All 345S sensors are compatible with the complete 2GIG security ecosystem, including the GC Touch, GC2, and 2GIG EDGE security panels. A key feature is the on-board switch for on/off selectable encryption to take advantge of encryption when applicable. Specs & Guides Manufatcurer 2GIG Part Number 2GIG-PIR100-345 Transmitter Frequency 345MHz Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery Supervisory Interval: 70 Minutes Sensor Type: Quad Element Pet Immunity: Up to 85 lbs (38 kg) Suggested Mounting Height: 7.5 ft. (2.3 m) Sensor Range: 30 ft. (9.1m) x 50 ft. (15.2 m) Horizontal Sensing Angle: 100° Maximum Spread Dimensions: (L x W x H) 3.53″ x 2.35″ x 1.63″ (5.4 x 6 x 4.1 cm) Weight: 3.5 oz (98 g) Operating Temperature: 32°-120° F (0°-49° C) Relative Humidity: 5% to 90%, Non-condensing Battery (Included): One CR 123A 3V or equivalent Lithium Battery Product Guides Installation Guide Plan Compatibility Alarm & Automation Alarm Home Cameras Only Cam Cam Pro Alarm, Automation & Cameras Protect Complete Support Why isn’t my motion detector working? After motion has occurred the detector will go into sleep mode for several minutes before it will detect motion again in order to conserve battery life and avoid sending repeated alarm signals. Leave the room for 5 minutes and then try again. Still have questions? We’ve got answers! The Surety support forum is the #1 resource for answers to all your questions about setting up and using your sensors. Find Answers
