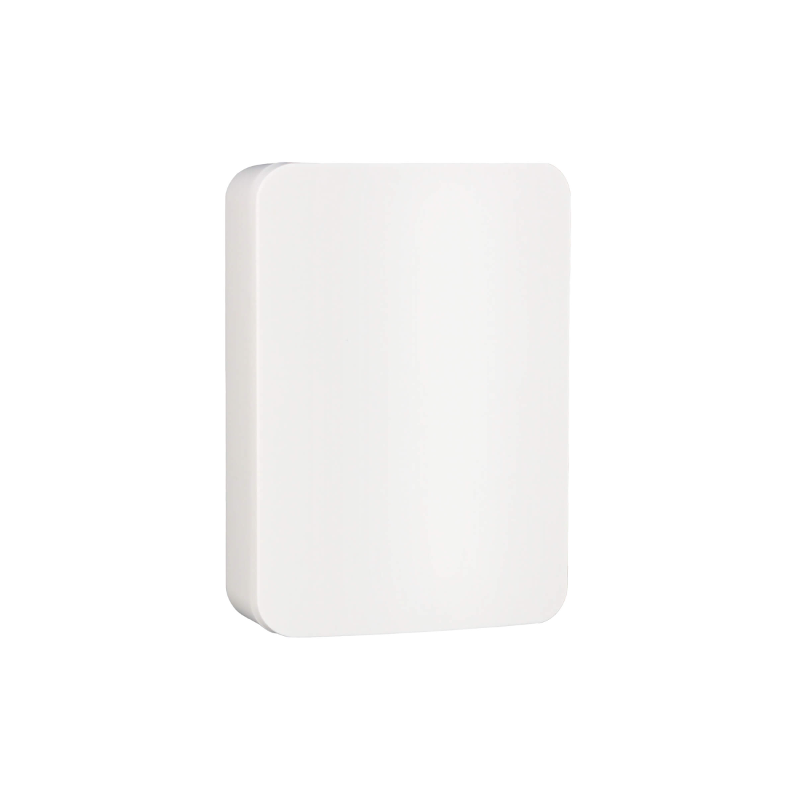

2GIG 345S Super Switch Wireless Hardwire Takeover Module

Description Overview The 2GIG-TAKE100-345 Makes your existing wired security sensors work with your 2GIG wireless security system. Supports up to 8 wired sensors. Does not work with smoke or carbon monoxide detectors. This item is not easy to install and is only recommended for those with capable electronics skills. 345S Sensors The 2GIG 345S sensor line offers reliable security coverage for residential and commercial properties. All 345S sensors are compatible with the complete 2GIG security ecosystem, including the GC Touch, GC2, and 2GIG EDGE security panels. A key feature is the on-board switch for on/off selectable encryption to take advantge of encryption when applicable. Specs & Guides Manufacturer 2GIG Part Number 2GIG-TAKE100-345 Frequency 345MHz Input Voltage 16.5~20VAC Backup Battery Up to 12VDC 7AH Dimension 3.53″ (89.7mm) x 2.56″ (65.0mm) x 1.22″ (31.0mm) Weight 3.21 oz (90.9g) Operating Temperature 32°-120° F (0° to 49° C) Humidity 5-95% Non-Condensing AC barrel connector DC power barrel plug, type A: 5.5mm OD, 2.1 mm ID Input Voltage 9-16VDC or 16.5-20VAC Aux Output 10-16V, 500mA Supported Zones 8 wired zones; 1 self-monitor zone Product Guides 2GIG-TAKE100-345 Installation Manual Plan Compatibility Alarm & Automation Alarm Home Cameras Only Cam Cam Pro Alarm, Automation & Cameras Protect Complete Support Still have questions? We’ve got answers! The Surety support forum is the #1 resource for answers to all your questions about setting up and using your sensors. Find Answers
