WeMos D1 ESP8266 Wifi Board

$ 23.52

What Makes Us Special

Every piece is carefully crafted by Jazac Art
Hypoallergenic, lightweight & skin-safe materials
Arrives beautifully packed, perfect for gifting
Secure checkout & buyer protection guaranteed
Easy returns & exchange

GUARANTEED SAFE CHECKOUT

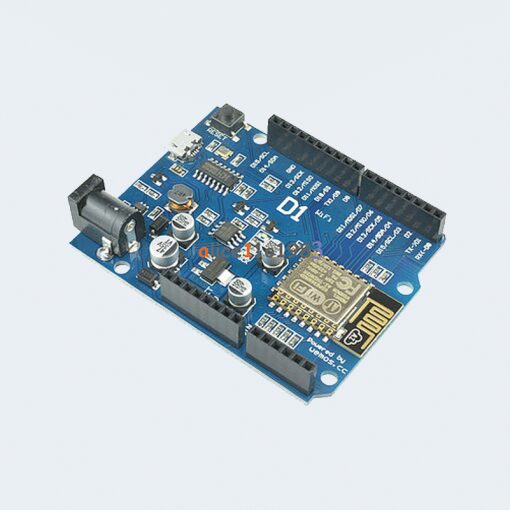

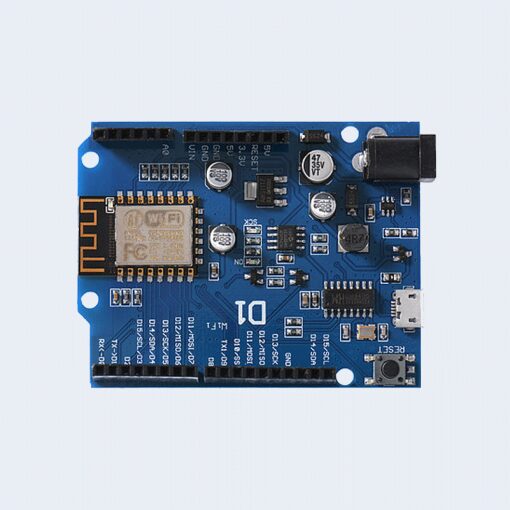

The ًًWeMos D1 is a WiFi capable ESP8266EX based development board in the form of the common Arduino UNO board format. This board is compatible with the Arduino IDE and with NodeMCU. The D1 R2 also features an on-board switching power supply which allows you to power the board from a power supply up to 12V. *Note: The D1 R2 is a 3.3V device. If you connect it to 5V digital sensors or devices you will need a logic level converter. Specifications: Microcontroller: ESP8266EX Operating Voltage: 3.3V Digital I/O Pins: 11 (all I/O pins have interrupt/pwm/I2C/one-wire capability, except for D0) Analog Input Pins: 1 (3.2V max input) Flash Memory: 4MB On-Board Switching Power Supply Input Voltage Range: 9V to 12V Output: 5V at 1A Max Board Dimensions: 68.6mm x 53.4mm (2.701″ x 2.102″) / Long x Wide Weight: 21.8g (0.769oz) نعتذر الشراء من الموقع متوقف مؤقتا We apologize : purchasing from our website is temporarily stopped
